Octave Aspect Pipe Stress

Aspect Pipe Stress is considered the industry standard for pipe stress analysis because of its dependability, calculation accuracy, safety and capacity to cater to a wide range of projects in a variety of industries.

Aspect Pipe Stress is designed to handle projects of all sizes, making it ideal for both small-scale installations and large, complex EPC projects. Its flexibility allows owner-operators and engineering firms to perform accurate pipe stress analysis regardless of project scope. Whether you’re working on a single piping system or an extensive plant design, Aspect Pipe Stress provides the same level of precision, compliance with international codes and safety assurance.

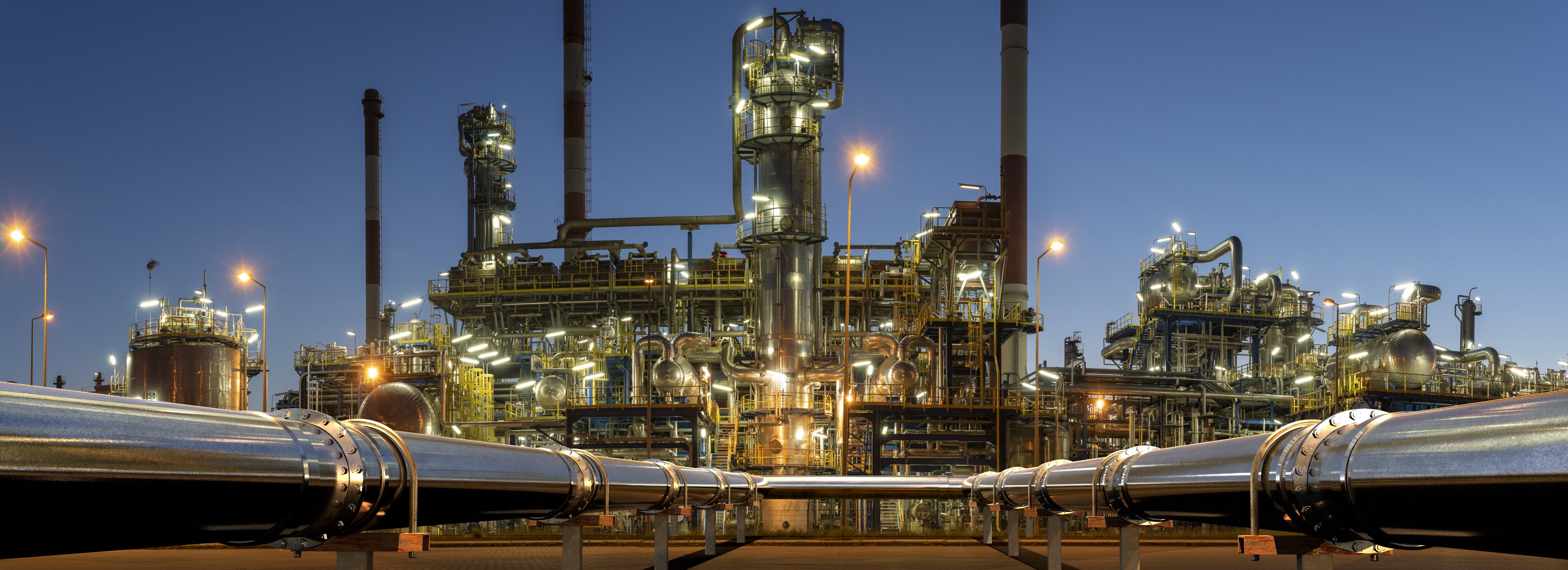

Aspect Pipe Stress is used across a wide range of industries where piping systems are critical to operations. The solution is commonly used in oil and gas, nuclear, petrochemical, power, pharmaceutical and food and beverage operations. It is also widely applied in water treatment, mining and renewable energy projects.

Aspect Pipe Stress performs static analysis for multiple conditions including buried piping and subsea piping (including wind/wave loadings). Specific piping codes for these types of pipelines are included, as are piping codes and materials covering fiberglass piping. In addition to static analysis, Aspect Pipe Stress also has dynamic analysis capability for modal, response spectrum, harmonic and time history analysis.

In addition to the main piping analysis, Aspect Pipe Stress also includes auxiliary modules for equipment nozzle analysis according to various standards (API-610, API-617, NEMA-SM23, API-661, HEI, API-650) and flange analysis (ASME and EN 1591). Local stress analysis according to WRC 107/297 and pipeline remaining strength calculations according to B31G are also available.

Yes. Aspect Pipe Stress is tested in accordance with the Octave Asset Lifecycle Intelligence Quality Assurance Program as presented in the Octave Nuclear and Safety Quality Assurance Program Guide, Revision 11, May 2021.

All versions of Aspect Pipe Stress are developed and maintained under a Quality Assurance Program to comply with the applicable ASME NQA-1 standard, along with 10 CFR Part 21 (U.S. NRC reporting) and U.S. 10 CFR Part 50 Appendix B (Q.A. reporting). Additionally, the Engineering Analysis team that develops and maintains the Aspect Pipe Stress product is conformant with Octave’s division-certified ISO 9001 Quality Management System.

Bi-directionality exists through integrations between Aspect Pipe Stress and Aspect Pressure Vessel for analysis, and Forte 3DWorx and Forte 3D for design. Both enable the transfer of design data, eliminating rework during project phases.

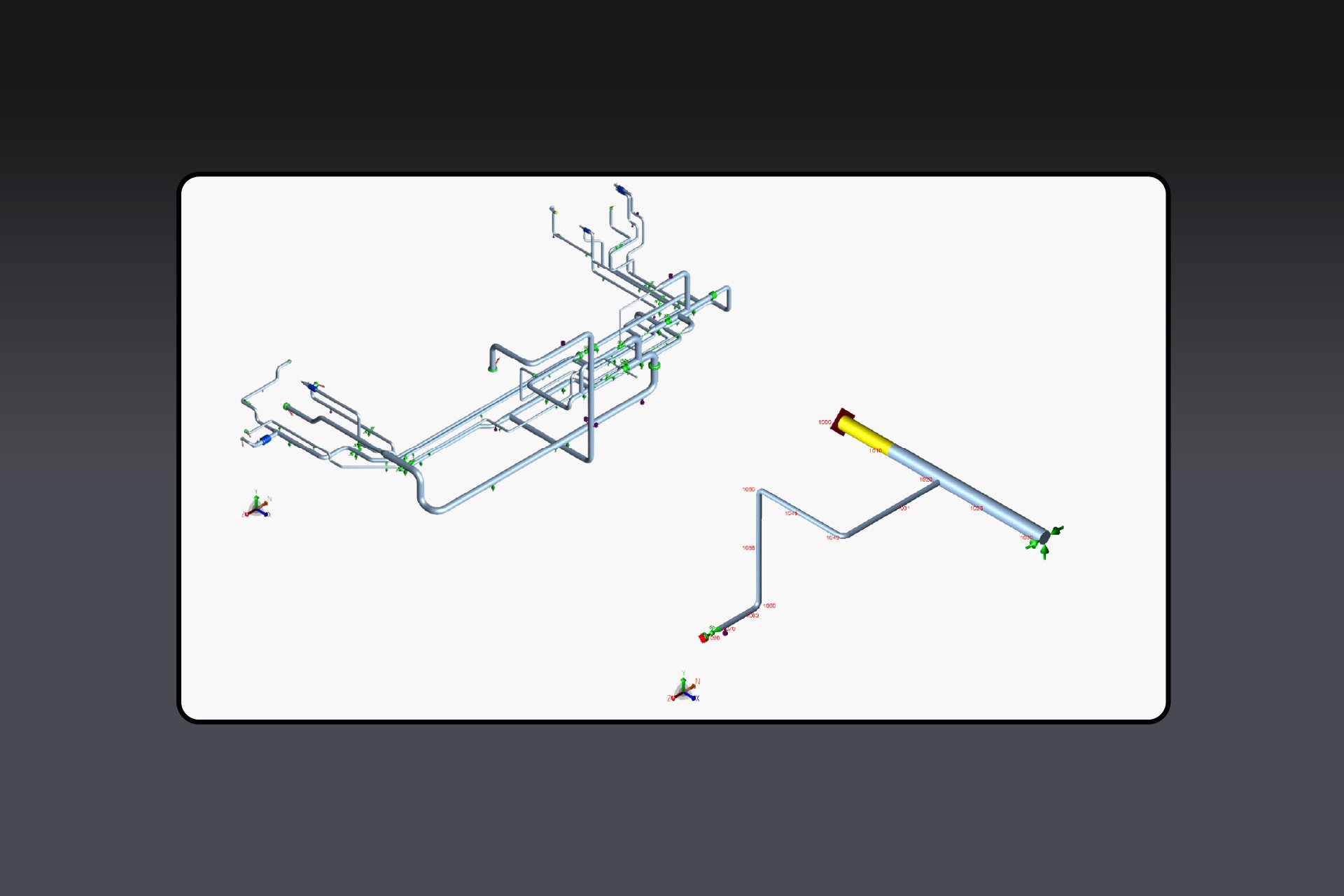

Pipelines, along with their analysis of data and conditions, can be exported from design solutions to Aspect Pipe Stress and vice versa. This speeds up modeling time per pipeline while allowing both the analyst and designer to consider possible design changes or improvements within the context of the original model. The ability to import a PCF file also allows for a pipeline to be imported into Aspect Pipe Stress from many different 3rd party design tools

For a quick look at interoperability between Design & Analysis solutions, click here.

In addition to interoperability with design tools, Aspect Pipe Stress can import large datasets from many common fluid flow packages for analysis purposes—specifically dynamic analysis—in order to quickly and accurately perform response spectrum or time history analysis.

Yes, using particular codes. ASME B31.1 and B31.3, for example, can be applied in different editions.

Yes, please request it here.
